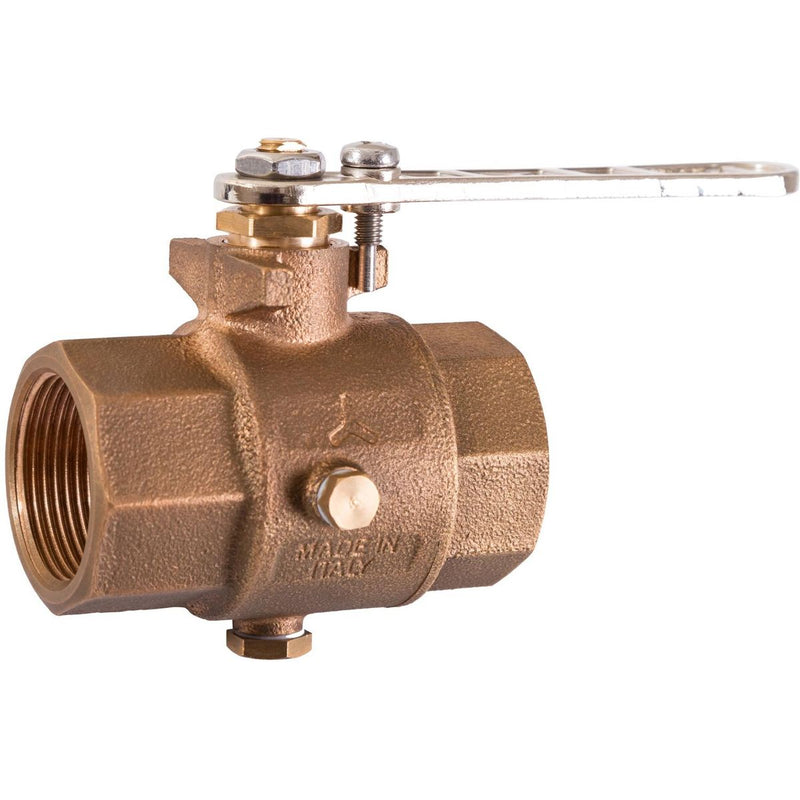

Maestrini Bronze Ball Valve (1" BSP Female) Lloyds Approved

Original price £122.23 - Original price £122.23
Original price
£122.23
£122.23 - £122.23
Current price £122.23

Description

1" BSP

The ball valve has a bronze construction with the body, coupling, stem and gland all being bronze, with a acetal polymer ball. The Maestrini bronze ball valve features drain plugs to simplify winterisation and a nickel-plated brass handle that can be re-positioned to reverse the direction of movement allowing for easier installation in certain applications.

Also available with position sensors and flange mounting.

This ball valve is suitable for hot water, steam, gasoline, fuel, oil, gas oil, kerosene and compressed air. The 1" ball valve has a threaded BSP Female port each end as well as a lever handle on top which requires a 1/4 turn.

Important Note: All fittings used for below the waterline applications must be correctly fitted and bonded so as to minimise the risk of electrolytic action.

Lloyds Approved.

Material Bronze Body (CC499K EN1982), Coupling, Stem & Gland (CC491K) with Acetal Polymer Ball, Nickle-Plated Brass Handle (CW617N EN12165) & PTFE Ball Sealing Gaskets
Primary Construction Bronze
Thread Connection BSP
Thread Fitting Size 1"
Thread Gender Female
Valve Design Ball Valve
Maximum Pressure 500 PSI
Thread Size 1" BSP Female
Brand Maestrini
Approvals Lloyds Type Approval
Temperature Range -10°C to +120°C
