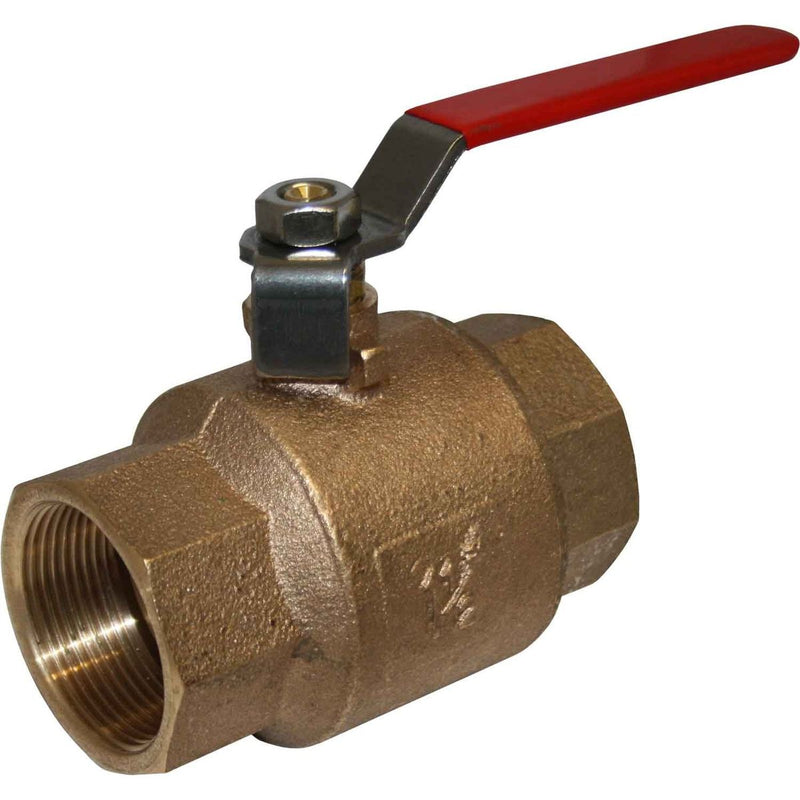

Maestrini Bronze Ball Valve (1 1/2" BSP Female)

Maestrini Bronze Ball Valve (1 1/2" BSP Female)

£94.19 - £94.19
£94.19
£94.19 - £94.19
£94.19
by T.Norris Marine

Description

The Maestrini 405727 ball valve body is constructed from bronze with a stainless steel handle. This ball valve is suitable for hot water, steam, gasoline, fuel, oil, gas oil, kerosene and compressed air. The bronze body ball valve has a 1.5" threaded BSP Female port each end as well as a lever handle on top which requires a 1/4 turn. The stainless lever handle comes with a rubber grip cover.

Depending on the application and installation requirements, these bronze body ball valves may not be suitable for below waterline applications.

Important Note: All fittings used for below the waterline applications must be correctly fitted and bonded so as to minimise the risk of electrolytic action

Material Bronze Body with Chrome Plated Brass Ball and Stainless Steel Handle
Primary Construction Bronze
Thread Connection BSP
Thread Fitting Size 1-1/2"
Thread Gender Female
Valve Design Ball Valve
Maximum Pressure 500 PSI
Replaces 406207, 406307
Thread Size 1-1/2" BSP Female
Brand Maestrini
Height Description 113mm (4.4")
Length 110mm, Handle: 122mm
Temperature Range -10°C to +120°C
Dimensions Bronze Body (CC491K) with Chrome Plated Brass Ball (CW617), Stainless Steel Handle (AST430) with Non-Slip Grip, PTFE Ball Sealing Gaskets and Brass Valve Shaft & Packing Body (CW617)
